ESD table mat antistatic Rubber mat 2mm Factory direct sales customized non slip recycled esd rubber mat
- item No : HZ-30617

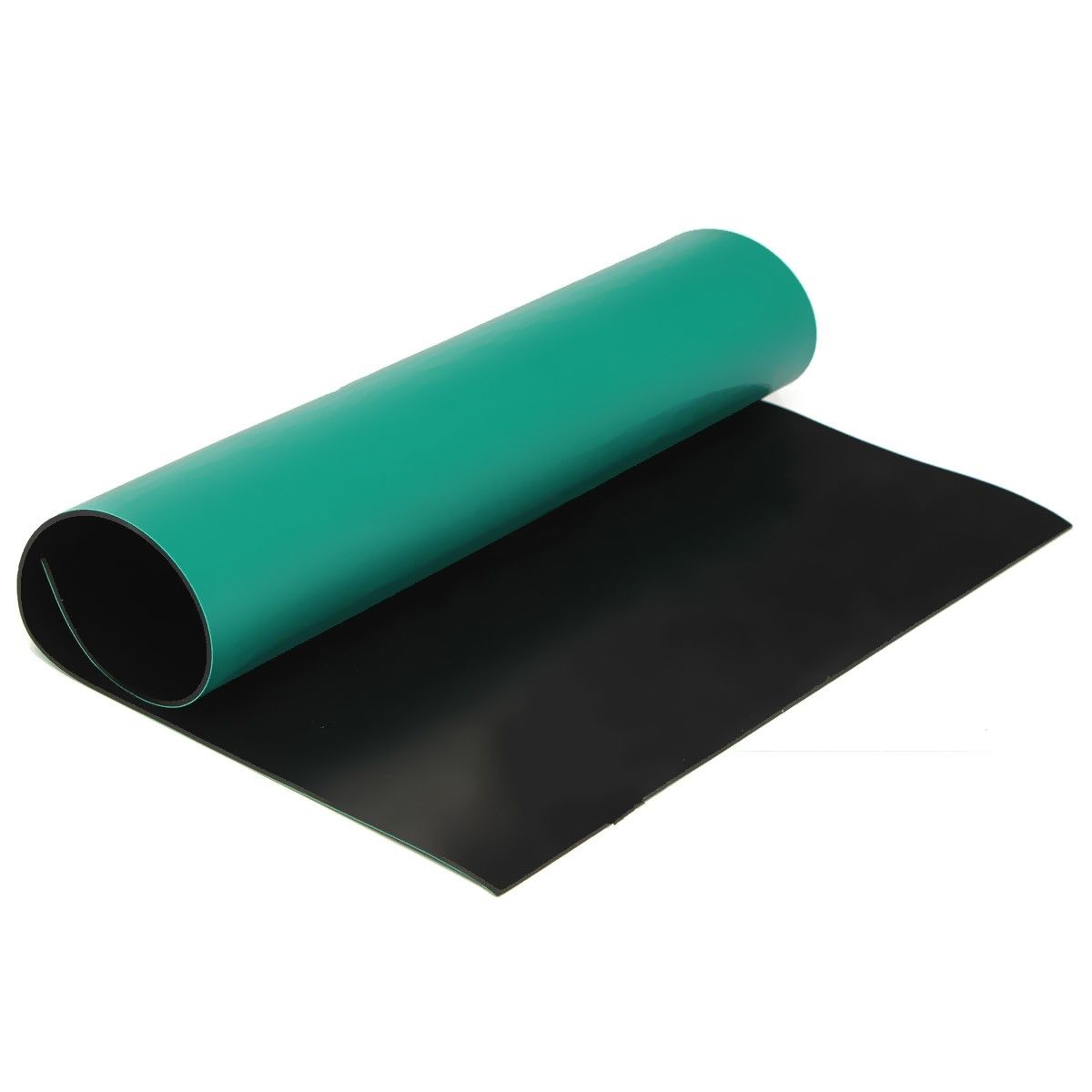

- HerzESD has a wide range of ESD table mats available in flexible rubber and vinyl materials, as well as rigid ESD table mats are ESD products and static control equipment serving the high-tech industry. ESD Rubber and PVC mats offer resistance to hot solder and chemicals and feature two layers - a static dissipative top and a black conductive bottom.
- Inquiry now
Detailed description

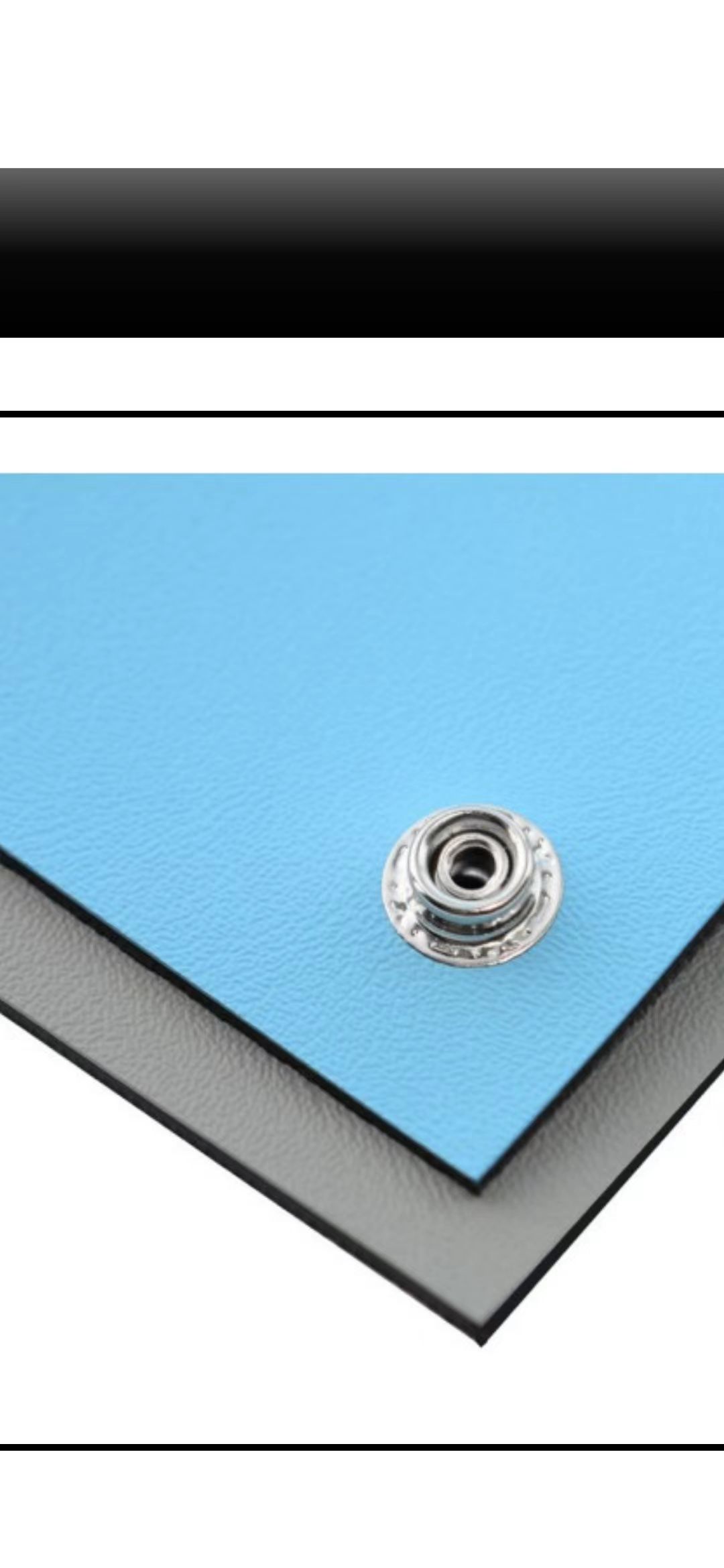

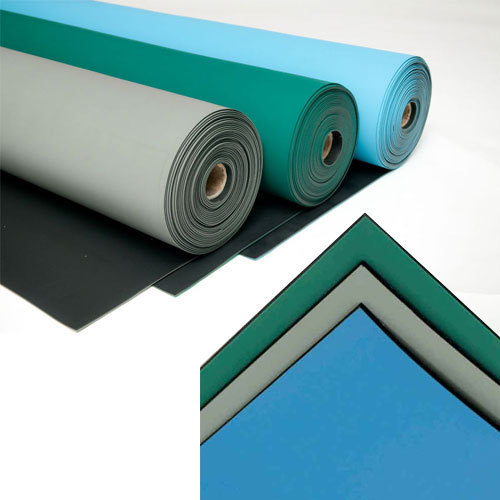

ESD vinyl table mats are suitable for general electronics assembly and are available in 2-layer mat or single layer homogeneous material. Both ESD rubber mats and vinyl mats are available in rolls or ESD work surface mat kits which include a ground snap and common point ground.
If you have special ESD mat requirements, HerzESD can cut mats to special sizes.
| Model | HZ-30617 |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |

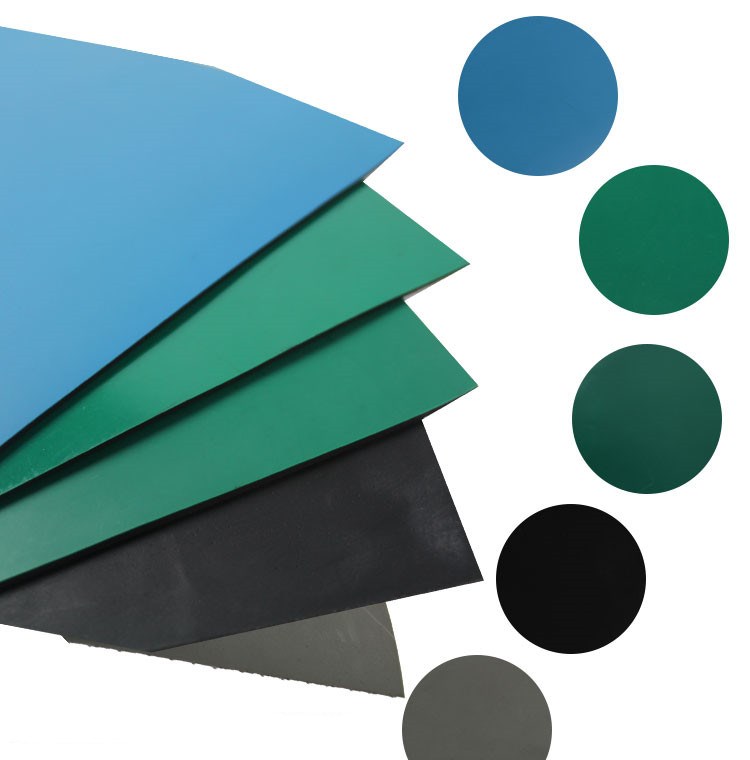

| Color | Green/Grey/ Blue |
| Surface | Matt/Glossy |
| Surface resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm·cm |
| Feature | ||
| Static dissipation layer | Surface resistance | 107-109ohm |
| Friction electrostatic charge | <100V | |
| Conductive layer | Surface resistance | ≤106ohm |
| Friction electrostatic charge | <50V | |
| Volume Resistance | 107-1010 ohm·cm | |
